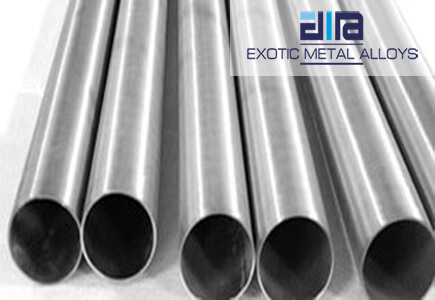

Inconel 600 Pipes & Tubes
Exotic Metal Alloys offers a wide scope of Alloy 600 Pipes, where it is broadly requested among the clients because of its different employments. These Inconel 600 Seamless Pipes (UNS N06600) was intended for administration temperatures from cryogenic to raised temperatures in the scope of 2000 Degree F. Inconel 600 Welded Pipes is nonmagnetic and have a great blend of high quality.
These Inconel 600 EFW Pipes are promptly weldable and are utilized in an assortment of consumption opposing applications. Inconel 600 ERW Pipes is a nickel – base compound with brilliant carburization. Inconel 600 Round Pipes too has incredible hot and cold usefulness. In the mean time, these Inconel 600 Pipes are additionally being offered in various sizes and shapes to our clients.
.jpg)
Inconel 600 Pipes is a nickel – chromium composite utilized for applications that require erosion and high temperature obstruction. These Inconel 600 Hexagonal Pipes is a non – attractive, nickel – based high temperature amalgam having a phenomenal blend of high quality, hot and cold functionality, and protection from conventional type of consumption.
Inconel 600 Hallow Pipes is a nickel – chromium combination with great oxidation opposition at higher temperatures, with great obstruction in carburizing and chloride containing situations. These Inconel 600 Bush Hex Pipes is a standard building material for applications which expect protection from consumption and warmth.
Specifications of Inconel 600 Pipes & Tubes
| Specifications | : | ASTM B 167 ASME SB 167 / ASTM B 829 ASME SB 829 / ASTM B 517 ASME SB 517 |
| Dimensions | : | ASTM, ASME and API |
| Seamless 600 Pipes | : | 4 to 219mm W. T.: 0.5 to 20mm |
| Welded 600 Pipes | : | 5.0 mm – 1219.2 mm |
| EFW 600 Pipes | : | 5.0 mm – 1219.2 mm |
| Size | : | 15″NB TO 150″NB IN |
| Specialized in | : | Large Diameter Size |
| Schedule | : | SCH5, SCH10, SCH40, STD, SCH80, SCH160 |
| Type | : | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Form | : | Round, Hydraulic Etc |
| Length | : | Single Random, Double Random & Cut Length. |
| End | : | Plain End, Beveled End, Treaded |
| Grade | UNS No | Old British | Euronorm | GOST | Japanese JIS | ||
| BS | En | No | AFNOR | ||||
| Inconel 600 | N06600 | NA 13 | NiCr15Fe | 2.4816 | NC15FE11M | МНЖМц 28-2,5-1,5 | NCF 600 |
Chemical Composition Of Inconel 600 Pipes & Tubes
| Grade | C | Mn | Si | Fe | S | Cr | Cu | Ni | |
| 600 | min. | – | – | – | 6.0 | – | 14.0 | – | 72.0 |
| max. | 0.15 | 1.0 | 0.5 | 10.0 | 0.015 | 17.0 | 0.5 | – | |
Mechanical Properties Of Inconel 600 Pipes & Tubes
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 600 | Psi – 95,000 , MPa -655 | Psi – 45,000 , MPa – 310 | 40 | – | – |
Other Types Of Inconel 600 Pipes & Tubes
| Inconel 600 Pipes | Inconel 600 Tubes | Alloy 600 Piping |
| Inconel Alloy 600 Tubing | UNS N06600 Alloy Pipes | Inconel 600 Seamless Pipes |
| Alloy 600 Welded Tubes | 600 Inconel Seamless Tubes | 600 Alloy Welded Pipes |
| 600 Alloy Fabricated Pipes | Inconel 600 Fabricated Tubes | Inconel 600 EFW Round Pipes |
| Inconel 600 Rectangular Pipes | Alloy 600 Large Diameter Fabricated Tubes | Alloy 600 Polished Pipe |
| 600 Inconel Electric Fusion Welding Pipes | 600 Alloy Instrumentation Tubes | Inconel 600 Capillary Tube |
| Alloy 600 ERW Pipes | Inconel 600 Rectangular Tubes | Inconel Alloy 600 Cold Rolled Coiled Tubing |
