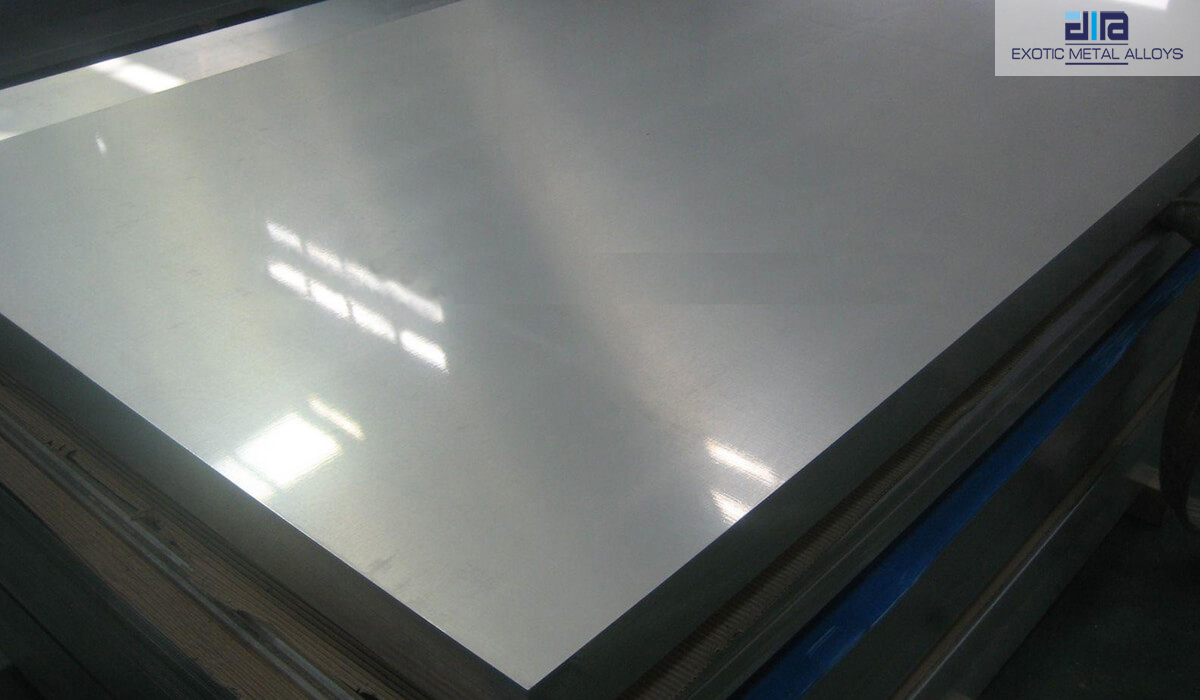

Alloy 20 Sheets & Plates
Exotic Metal Alloys is one of the prime producers of Alloy 20 Sheets, Plates and Coils that are being sourced by using high bore of unrefined material and tries to give robustness of most shocking nature of industry standard things.
Alloy 20 Sheets is a nickel–chromium–molybdenum tempered steel composite made for limits that incorporates sulfuric destructive. Compound 20 Plates chloride and setting molecule utilization and its copper substance watches it from sulfuric destructive. The erosion obstruction of these Alloy 20 Coils in like manner finds its various uses in business undertakings like mixture, sustenance, power period, plastics and pharmaceutical.
In any case called UNS N08020, these sheets and plates are consistently picked to decide pressure utilization breaking issues that may perhaps occur with 316L impeccable. At that point, these Alloy 20 sheets, plates and curls can additionally be revamped in regards to sizes and thicknesses as per specific requirements given by our respected customers.
Specifications of Alloy 20 Sheets & Plates
| Grades | Alloy 20 (UNS No. N08020) |
|---|---|
| Standard | ASTM B 463, ASME SB 463 |
| Dimensions | ASTM, ASME. |
| Thickness | 1.0mm – 200mm |
| Width | 1000mm-3000mm |
| Production | Hot-Rolled (HR) / Cold-Rolled (CR) |
| Application | Chemicals & Fertilizers Industries , Sugar Mills , Cement Industries , Ship Building , Paper Industries , Oil & Gas , Petrochemicals , etc |
Chemical Composition Of Alloy 20 Sheets & Plates
| Element | Alloy 20 |
|---|---|
| Ni | 32 - 38 |
| Fe | Bal |
| C | 0.02 max |
| Mn | 1 - 2 |
| Si | 0.7 max |
| Cu | 3 - 4 |
| Cr | 19 - 21 |
| Mo | 2 - 3 |
| S | 0.005 max |
| P | 0.02 max |
| Nb | 0.1 - 0.3 |
Mechanical Properties Of Alloy 20 Sheets & Plates
| Element | Alloy 20 |
|---|---|
| Density | 8.1 g/cm3 |
| Melting Point | 1443 °C (2430 °F) |
| Tensile Strength | Psi -80,000, MPa -551 |
| Yield Strength (0.2%Offset) | Psi - 35,000, MPa - 241 |
| Elongation | 30 % |
Other Types Of Alloy 20 Sheets & Plates
| Alloy 20 Shim Sheet | UNS N06020 Alloy Plate | Alloy 20 Flats |
| Alloy 20 Plain Sheet | 20 Alloy Blank (Circle) | 20 Alloy Foils |
| UNS N06020 Alloy 20 Shim Sheet | Alloy 20 Polished Plates | Alloy 20 Polished Sheets |
| Alloy 20 Hot Rolled Plate (HR) | Alloy 20 Cold Rolled Sheet (CR) | N06020 Alloy 20 Circle |
| Alloy 20 Sheets | Alloy 20 Plates | Alloy 20 Coils |
| N06020 Alloy Rolls | Alloy 20 Perforated Sheet | Alloy 20 Strip |
| Alloy 20 Slatting Coil | DIN 2.4620 Alloy Thin Sheet | Alloy 20 Strips |
