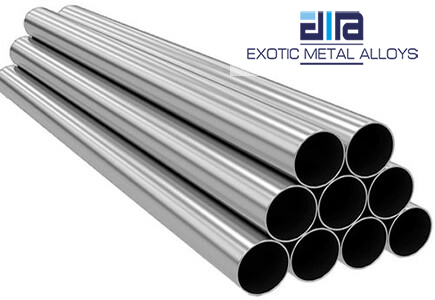

Hastelloy C276 Pipes & Tubes
Exotic Metal Alloys is offers an expansive range of Hastelloy Alloy C276 Pipes, where customers can pick these items from different sizes and particulars according to their particular prerequisites. Hastelloy C276 Round Pipes (UNS N10276) is a created consumption – safe amalgam. Hastelloy C276 Seamless Pipes is a Nickel – Molybdenum – Chromium compound with the expansion of Tungsten, has amazing consumption obstruction in a wide scope of destructive media and is particularly impervious to pitting and fissure erosion.
Hastelloy C276 Welded Pipes is a nickel – molybdenum – chromium – tungsten combination with phenomenal general consumption opposition and great fabricability. Hastelloy C276 EFW Pipes is a Nickel – chromium – molybdenum fashioned compound that is viewed as the most adaptable consumption safe composite accessible. In the interim, these Hastelloy C276 ERW Pipes are likewise being offered in redone sizes and shapes to our clients. We likewise offer these Hastelloy C276 Square Pipes at best potential rates.
Notwithstanding having extraordinary consumption obstruction, Hastelloy C276 Rectangular Pipes can likewise be promptly created. Hastelloy C22 Pipes can be created utilizing indistinguishable methods from are utilized for combinations Hastelloy C276 Electropolish Pipes. For ideal consumption execution in Hastelloy C276 Hexagonal Pipes, the re – toughening of cold worked parts (following an external fiber extension of 7 % or more) is significant. Hastelloy C276 Hallow Pipes can be welded, fashioned, hot – upset and effect expelled. As a rule, the high temperature Hastelloy C276 Bush Hex Pipes are more hard to machine than treated steels.
Specifications of Hastelloy C276 Pipes & Tubes
| Specifications | : | ASTM B 622 ASME SB 622 / ASTM B 619 ASME SB 619 |
| Dimensions | : | ASTM, ASME and API |
| Size | : | 15″NB TO 150″NB IN |
| Specialized in | : | Large Diameter Size |
| Schedule | : | SCH5, SCH10, SCH40, STD, SCH80, SCH160 |
| Type | : | Seamless / ERW / Welded / Fabricated |
| Form | : | Round, Hydraulic Etc |
| Length | : | Single Random, Double Random & Cut Length. |
| End | : | Plain End, Beveled End, Treaded |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | OR | GOST |
| Hastelloy C276 | N10276 | 2.4819 | – | NiMo16Cr15W | NW 0276 | ЭП760 | ХН65МВУ |
Chemical Composition Of Hastelloy C276 Pipes & Tubes
| Hastelloy C276 | Ni | C | Mo | Mn | Si | Fe | P | S | Co | Cr |
| Balance | 0.01 max | 15 – 17 | 1.0 max | 0.08 max | 4 – 7 | 0.04 max | 0.03 max | 2.5 max | 14.5 – 16.5 |
Mechanical Properties Of Hastelloy C276 Pipes & Tubes
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 52,000 , MPa – 355 | Psi – 1,15,000 , MPa – 790 | 40 % |
Other Types Of Hastelloy C276 Pipes & Tubes
| Hastelloy C276 Pipes | Hastelloy C276 Tubes | Alloy C276 Piping |
| Hastelloy C276 Rectangular Pipes | Alloy C276 Large Diameter Fabricated Tubes | Alloy C276 Polished Pipe |
| Alloy C276 Welded Tubes | C276 Hastelloy Seamless Tubes | C276 Alloy Welded Pipes |
| Hastelloy Alloy C276 Tubing | UNS N10276 Alloy Pipes | Hastelloy C276 Seamless Pipes |
| C276 Hastelloy Electric Fusion Welding Pipes | C276 Alloy Instrumentation Tubes | Hastelloy C276 Capillary Tube |
| Alloy C276 ERW Pipes | Hastelloy C276 Rectangular Tubes | Hastelloy Alloy C276 Cold Rolled Coiled Tubing |
| C276 Alloy Fabricated Pipes | Hastelloy C276 Fabricated Tubes | Hastelloy C276 EFW Round Pipes |
