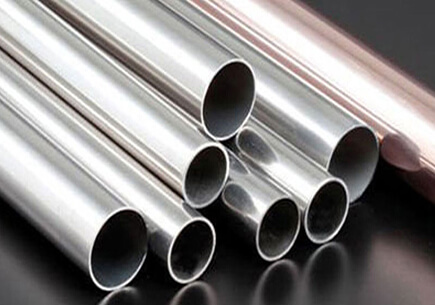

Monel K500 Pipes & Tubes
Exotic Metal Alloys is offers Monel Alloy K500 Pipes, where we offer these items to our regarded clients in different structures. Monel K500 Seamless Pipes is regularly utilized in siphon segments, specialist sharp edges and scrubbers, oil well drill collars and link wrap, marine instruments, electronic segments, springs, valve plate, and submarine parts.
Monel K500 Welded Pipes is a precipitation – hardenable nickel – copper composite that joins high quality, erosion obstruction and non – attractive properties. Monel K500 EFW Pipes joins the amazing erosion opposition normal for Monel 400 EFW Pipes with the additional focal points of more prominent quality and hardness.
Then, these Monel K500 ERW Pipes are additionally being offered in various sizes and shapes to our clients. Monel K500 Round Pipes (UNS N05500) is for all intents and purposes nonmagnetic, even at very low temperatures. Monel K500 Pipes can without much of a stretch be welded by gas – tungsten circular segment, gas metal bend or protected metal curve forms utilizing fitting filler metals.
The nickel and copper substance of the Monel K500 Pipes were in the rough proportion which is currently officially determined for the compound. Monel K500 Pipes is a precipitation – hardenable nickel – copper compound that consolidates high quality, consumption obstruction and non-attractive properties. There is no requirement for post weld heat treatment in these Monel K500 Pipes, nonetheless, careful cleaning subsequent to welding is basic for ideal consumption obstruction, in any case there is the danger of pollution and embrittlement.
Specifications of Monel K500 Pipes & Tubes
| Specifications | : | ASTM B 163 ASME SB 163 / ASTM B 165 ASME SB 165 |
| Dimensions | : | ASTM, ASME and API |
| Size | : | 15″NB TO 150″NB IN |
| Specialized in | : | Large Diameter Size |
| Range | : | 6.35 mm OD upto 254 mm OD in 0.6 TO 20 mm thickness. |
| Type | : | Seamless / ERW / Welded / Fabricated |
| Form | : | Round, Hydraulic Etc |
| Length | : | Single Random, Double Random & Cut Length. |
| End | : | Plain End, Beveled End, Treaded |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Monel K500 | N05500 | 2.4375 | – | – | – | – | – |
Chemical Composition Of Monel K500 Pipes & Tubes
| Monel K500 | Ni | C | Al | Mn | Si | Fe | Cu | S | Ti | Cr |
| 63.0 min | 0.25 max | 2.3 – 3.15 | 1.5 max | 0.5 max | 05 – 2 | 27.0 – 33.0 | 0.010 max | 0.35 – 0.85 | – |
Mechanical Properties Of Monel K500 Pipes & Tubes
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 1,60,000 , MPa – 1100 | 20 % |
Other Types Of Monel K500 Pipes & Tubes
| Monel Alloy K500 Tubing | UNS N04K500 Alloy Pipes | Monel K500 Seamless Pipes |
| K500 Monel Electric Fusion Welding Pipes | K500 Alloy Instrumentation Tubes | Monel K500 Capillary Tube |
| Alloy K500 ERW Pipes | Monel K500 Rectangular Tubes | Monel Alloy K500 Cold Rolled Coiled Tubing |
| Alloy K500 Welded Tubes | K500® Monel Seamless Tubes | K500 Alloy Welded Pipes |
| K500 Alloy Fabricated Pipes | Monel K500 Fabricated Tubes | Monel K500 EFW Round Pipes |
| Monel K500 Rectangular Pipes | Alloy K500 Large Diameter Fabricated Tubes | Alloy K500 Polished Pipe |
| Monel K500 Pipes | Monel K500 Tubes | Alloy K500 Piping |
