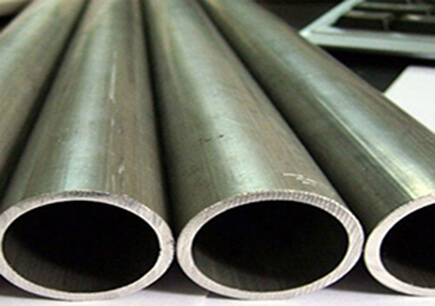

Nickel 201 Pipes & Tubes
Exotic Metal Alloys is one of the pioneer trading houses of quality Nickel Alloy 201 Pipes, which are Commercially Pure Nickel. It only differs from Ni 200 Pipes by its carbon content, where this slight drop in carbon allows Nickel 201 Seamless Pipes to be utilized in higher temperature applications (over 600 Degree F).
Nickel 201 Welded Pipes are solid solution strengthened, commercially pure wrought materials with good mechanical properties over a wide range of temperatures and excellent resistance to many corrosives, in particular hydroxides. Nickel 201 EFW Pipes was a modification of 200 to control carbon which keeps it from being embrittled by inter – granular precipitates at temperatures of 600 Degree F to 1400 Degree F in many processes.
Typically, the elemental restrictions of both, Nickel 201 EFW Pipes and nickel 201 pipes, are combined into one, dual – certified chemistry resulting in a single alloy with the desired characteristics of both alloys. Nickel 201 Round Pipes offer corrosion resistance in reducing and neutral media as well as in oxidizing atmospheres provided that the oxidizing media allows the formation of a passive oxide film.
The oxide film accounts for the excellent resistance of Nickel 201 Pipes in caustic environments. Corrosion rates of Nickel 201 Pipes in both marine and rural atmospheres are very low. Nickel 201 Pipes is normally limited to service at temperatures below 600 Degree F..
Specifications of Nickel 201 Pipes & Tubes
| Specifications | : | ASTM B 161 ASME SB 161 / ASTM B 622 ASME SB 622 |
| Dimensions | : | ASTM, ASME and API |
| Size | : | 15″NB TO 150″NB IN |
| Specialized in | : | Large Diameter Size |
| Type | : | Seamless / ERW / Welded / Fabricated |
| Form | : | Round, Hydraulic Etc |
| Length | : | Single Random, Double Random & Cut Length. |
| End | : | Plain End, Beveled End, Treaded |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Nickel 201 | N02201 | 2.4068 | – | LC-Ni 99 | NW 2201 | NA 12 | НП-2 |
Chemical Composition Of Nickel 201 Pipes & Tubes
| Nickel 201 | Ni | C | Mo | Mn | Si | Fe | P | S | Cu | Cr |
| Balance | 0.15 max | – | 0.35 max | 0.35 max | 0.40 max | – | 0.01 max | 0.25 max | – |
Mechanical Properties Of Nickel 201 Pipes & Tubes
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 21500 , MPa – 148 | Psi – 67000 , MPa – 462 | 45 % |
Other Types Of Nickel 201 Pipes & Tubes
| Alloy 201 Welded Tubes | 201 Nickel Seamless Tubes | 201 Alloy Welded Pipes |
| 201 Alloy Fabricated Pipes | Nickel 201 Fabricated Tubes | Nickel 201 EFW Round Pipes |
| Nickel 201 Rectangular Pipes | Alloy 201 Large Diameter Fabricated Tubes | Alloy 201 Polished Pipe |
| 201 Nickel Electric Fusion Welding Pipes | 201 Alloy Instrumentation Tubes | Nickel 201 Capillary Tube |
| Alloy 201 ERW Pipes | Nickel 201 Rectangular Tubes | Nickel Alloy 201 Cold Rolled Coiled Tubing |
| Nickel 201 Pipes | Nickel 201 Tubes | Alloy 201 Piping |
| Nickel Alloy 201 Tubing | UNS N02201 Alloy Pipes | Nickel 201 Seamless Pipes |
