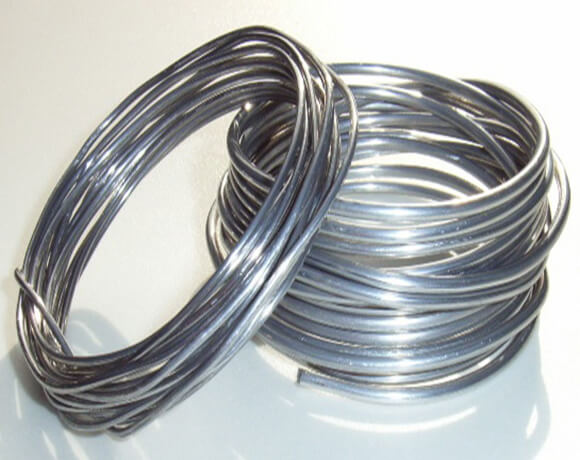

Incoloy 800/800H/800HT Wires
Incoloy 800/800H/800HT Wire is known best for its staggering quality disintegrating square, quality and handiness. These wires are ordinarily used in endeavors and applications as they show better execution at high and raised temperature. Everything considered, in case you are filtering for the ideal individual or connection that can give you astonishing wires, by then we would endorse you to pick Padmavati Steel & Engg.Co.. They are the standard creators who give their customers the best and regular nature of Inconel wires.
These wires are manufactured using all things considered quality standard foul material that is all around attempted and separated by our practiced specialists. These wires can without a great deal of a stretch withstand in momentous temperature and condition since they are hard and adequately arranged to persevere through valid climatic conditions.
The producers who age these wires guarantee that every material and contraption used for get-together it as indicated by mechanical benchmarks or not. These Inconel 800, 800H and 800HT wires meet both worldwide and national standard and central focuses including ASTM and ASME benchmarks.
These wires are accessible to customers in different structures and shapes as shown by their good position and application fundamental. These wires are shining and have an amazing tidied wrapping up. In like manner, when these wires are totally created they kept running over various tests and evaluations including flaring test, radiography test, smoothing test, hardness test. These tests are done under the course and supervision of examination workplaces and quality experts.
Specifications of Incoloy 800/800H/800HT Wires
| Specifications | : | ASTM B408 / SB408 |
| Dimensions | : | ANSI/AWCI – 01 -1992 and ASTM E 2016-11 and RRW 360 |
| Length | : | 100 mm TO 6000 mm |
| Diameter | : | 0.01 mm To 200 mm |
| Specialize | : | Filler Wire, Coil Wire |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | - | X8NiCrAlTi32-21 | XH32T |
Chemical Composition Of Incoloy 800/800H/800HT Wires
| Element | Incoloy 800 | Incoloy 800H | Incoloy 800HT |
| C | 0.10 max | 0.05 – 0.10 | 0.06 – 0.10 |
| Mn | 1.50 max | 1.50 max | 1.50 max |
| Si | 1 max | 1 max | 1 max |
| S | 0.015 max | 0.015 max | 0.015 max |
| Cu | 0.75 max | 0.75 max | 0.75 max |
| Fe | 39.50 min | 39.50 min | 39.50 min |
| Ni | 30 – 35 | 30 – 35 | 30 – 35 |
| Cr | 19 – 23 | 19 – 23 | 19 – 23 |
| Al | 0.15 – 0.60 | 0.15 – 0.60 | 0.15 – 0.60 |
| Ti | 0.15 – 0.60 | 0.15 – 0.60 | 0.15 – 0.60 |
Mechanical Properties Of Incoloy 800/800H/800HT Wires
| Element | Incoloy 800-800H-800HT |
| Density | 7.94 g/cm3 |
| Melting Point | 1385 °C (2525 °F) |
| Tensile Strength | Psi – 75,000 , MPa – 520 |
| Yield Strength (0.2%Offset) | Psi – 30,000 , MPa – 205 |
| Elongation | 30 % |
