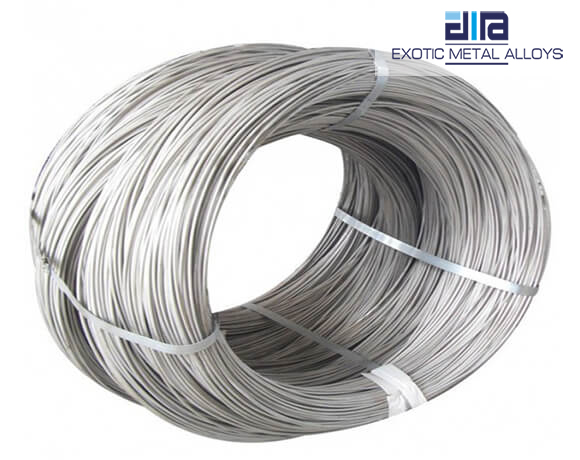

Monel 400 Wires
Monel 400 wire for satisfying different applications needs. In the event that you are imagining that from which vendor you can have the methodology, you can pick Padmavati Steel & Engg.Co.. The motivation driving why you can pick this industry is as they are top driving makers that are over the globe is organizing as confirmed stockiest, provider, exporter of high check of the wide complete dimension of wires.
We are passing on the wire by using amazing nature of grungy material, most recent improvement and contraptions. This enables them in passing on observing nature of the thing for different applications even in carefully conditions.
The affirmation of Monel 400 wire is ASME SA 164 and ASTM B 164. Its part is ASTM E 2016-11, AWCI/ANSI – 01-1992 and RRW 360. Long, it is open as 100mm and 6000mm. Its estimation is 10mm to 100mm. It is address critical pro in welding wire, filler wire, cathode wire and curve wire.
During the period of whole age arrangement of the Monel 400 wire, the industry is playing out a cautious quality check of the thing. The thing quality check is done through different balanced systems. The testing ventures through resulting to smoothing examination, flaring test, positive material evident check test, intergranular use test, compound test and mechanical test, hardness test. In this manner there is zero percent authenticity of getting the thing got out in its quality.
Specifications of Monel 400 Wires
| Specifications | : | ASTM B164 ASME SB164 |
| Dimensions | : | ANSI/AWCI – 01 -1992 and ASTM E 2016-11 and RRW 360 |
| Length | : | 100 mm TO 6000 mm |
| Diameter | : | 0.01 mm To 200 mm |
| Specialize | : | Filler Wire, Coil Wire, Electrode Wire, Welding Wire. |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Chemical Composition Of Monel 400 Wires
| Element | Monel 400 |
| C | 0.30 max |
| Mn | 2.00 max |
| Si | 0.50 max |
| S | 0.024 max |
| Cu | 28 – 34 |
| Fe | 2.50 max |
| Ni | 63.00 min |
Mechanical Properties Of Monel 400 Wires
| Element | Monel 400 |
| Density | 8.8 g/cm3 |
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | Psi – 80,000 , MPa – 550 |
| Yield Strength (0.2%Offset) | Psi – 35,000 , MPa – 240 |
| Elongation | 40 % |
